CHI Instruments CHI1030B
CHI1030B instrument is a computerized eight-channel potentiostat. The system contains a digital function generator and multiplexed data acquisition circuitry. The multi-potentiostat can work with eight independent cells or eight working electrodes in the same solution with common reference and counter electrodes. The potential control range is ±10 V for all channels and the current range is ±10 mA. The instrument is capable of measuring current down to picoamperes. Each electrode can be individually controlled, including on/off control, potential, and sensitivity settings; each can be set to an independent potential or the same potential as the primary channel, so that they can sweep or step potentials together with the primary channel.
![CHI Instruments CHI1030B](/en/ibi/ibi-3/expertise/instrumentation-and-methods/chiinstruments1.png/@@images/image/preview)

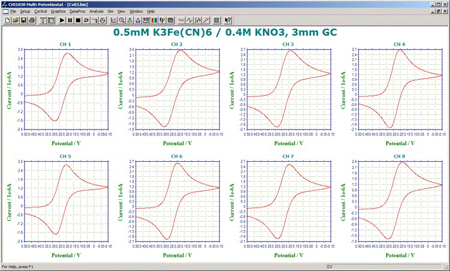

Many electrochemical techniques are available, including cyclic voltammetry and amperometric i-t measurements, with all eight channels available (except for open circuit potential measurements). The parameters for all channels must be set before running an experiment; you cannot alter parameter settings during experiments. During a run, you can toggle between single and multi-data set display (parallel or overlay plots). After a run, you can choose data from any channel for parallel or overlay plotting.
![CHI Instruments CHI1030B](/en/ibi/ibi-3/expertise/instrumentation-and-methods/chiinstruments3.png/@@images/image/great)
Applications:
- Array electrode characterization and sensor studies
- It can be used for eight independent cells or for eight working electrodes in a same solution
Specifications:
8-Channel potentiostat
- (8 independent cells or a multi-working electrode cell)
- Potential range (all channels): ±10 V
- Applied potential accuracy: ±1 mV, ±0.01% of scale
- Potentiostat rise time: < 2 μs
- Applied potential noise: < 10 μV rms
- Potential control noise: < 10 uV
- Compliance voltage: ±12 V
- Current range (each channel): 10 mA
- Reference electrode input impedance: 1x1012 ohm
- Sensitivity scale: 1x10-9 - 0.001 A/V in 7 ranges
- Minimum current resolution: 0.0015% of current range, minimum 0.3 pA
- Input bias current: < 50 pA
- Fast waveform update: 5 MHz @ 16-bitast data acquisition: up to 1 MHz @ 16-bit
- Fast data acquisition: up to 1 MHz @ 16-bit
CV and LSV scan rate:
- 0.000001 to 5000 V/s (sequential scan)
- 0.000001 to 25 V/s (8 channel simultaneous scan)
- Potential increment during scan: 0.1 mV @ 1,000 V/s
CC and CA pulse width: 0.0001 to 1000 s
CA and CC sample interval:
- 1e-6 to 50 s (sequential step)
- 8e-5 to 50 s (8 channel simultaneous step)
DPV and NPV pulse width: 0.001 to 10 s
SWV frequency:
- 1 Hz to 100 KHz (sequential scan)
- 1 to 3125 Hz (8 channel simultaneous scan)
ACV frequency:
- 1 to 10000 Hz (sequential scan)
- 1 to 312 Hz (8 channel simultaneous scan)
SHACV frequency:
- 1 to 5000 Hz (sequential scan)
- 1 to 250 Hz (8 channel simultaneous scan)
FTACV frequency: simultaneously acquire 1st, 2nd, 3rd, 4th, 5th, and 6th harmonics ACV data
- 0.1 to 50 Hz (sequential scan)
- 0.1 to 34 Hz (8 channel simultaneous scan)
i-t sample interval:
- 1e-6 to 100 s (sequential scan)
- 8e-5 to 100 s (8 channel simultaneous scan)
Current low-pass filters
Current analog output
Cell control: purge, stir, and knock
Maximum data length: 128K - 4096K selectable
