V5 LoRa Gateway and Server Unit

Compact, all in one solution for data reception, data processing
and data storage in one housing

Hardware included:

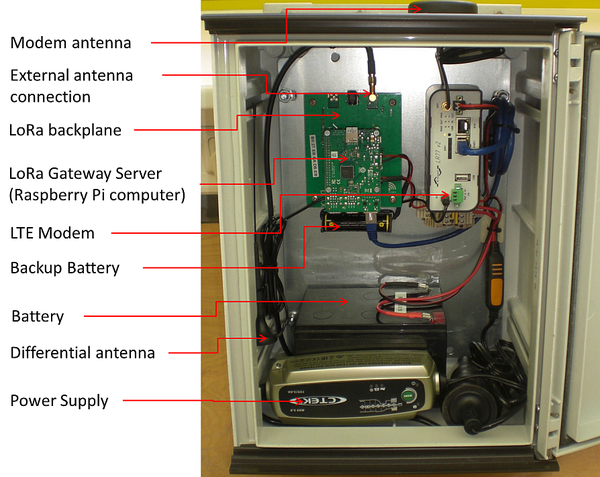

V5 LoRa Gateway and Server Unit
SoilNet LoRa gateway/server implemented on a Raspberry Pi single-board computer and supporting infrastructure (LTE Modem for internet connection, power supply and various antennas)
  • Concentrator iC880A-SPI
  • Raspberry Pi 3 with 16 Gbyte SD Card
  • LTE Modem
  • USV
  • 12 V Acid/gel main battery
  • LoRa antenna
  • LTE antenna



Software included:

  • Packet forwarder
  • LoRa Gateway bridge
  • LoRa Server
  • LoRa App Server
  • LoRa SoilNet CPA
  • In a SoilNet LoRa sensor network application, typically both gateway and server operate on a single device.
  • This has the advantage that no instabilities of the network due to a weak mobile network connection can occur.
  • However, in case of large scale LoRa networks with multiple gateways, the server software must be centralized and the communication between gateway and server has to be realized with a mobile internet connection.
