V5 Common Features

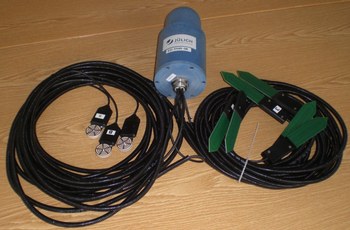

Sensor unit
- Each sensor unit can host up to 9 SDI-12 sensors (e.g. to measure soil moisture, matrix potential etc.), 4 sensors with analog output signal and one reed switch sensor (e.g. rain gauge) – maximum is 9 sensors in total
- 3.6 V lithium battery can support at least 60000 measurements
- Possibility of energy supply by an optional solar panel
Data logging function & handshake mechanism for unbroken dataflow
![V5 Common Features](/en/ibg/ibg-3/images/research/environmental-processes-and-technologies/terrestrial-observation-platforms/soilnet/moisture_sensors_truebner_smt100.jpg/@@images/image/teaser)

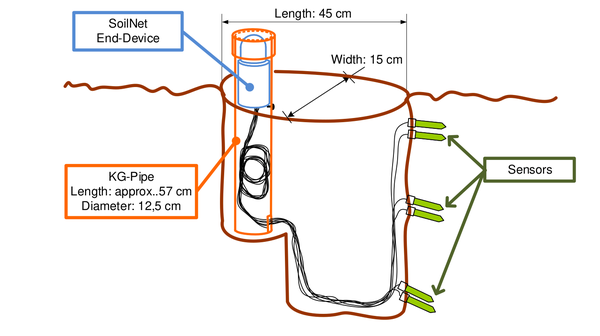

![V5 Common Features](/en/ibg/ibg-3/images/research/environmental-processes-and-technologies/terrestrial-observation-platforms/soilnet/einbauzeichnung_v3_v5.png/@@images/image/teaser)

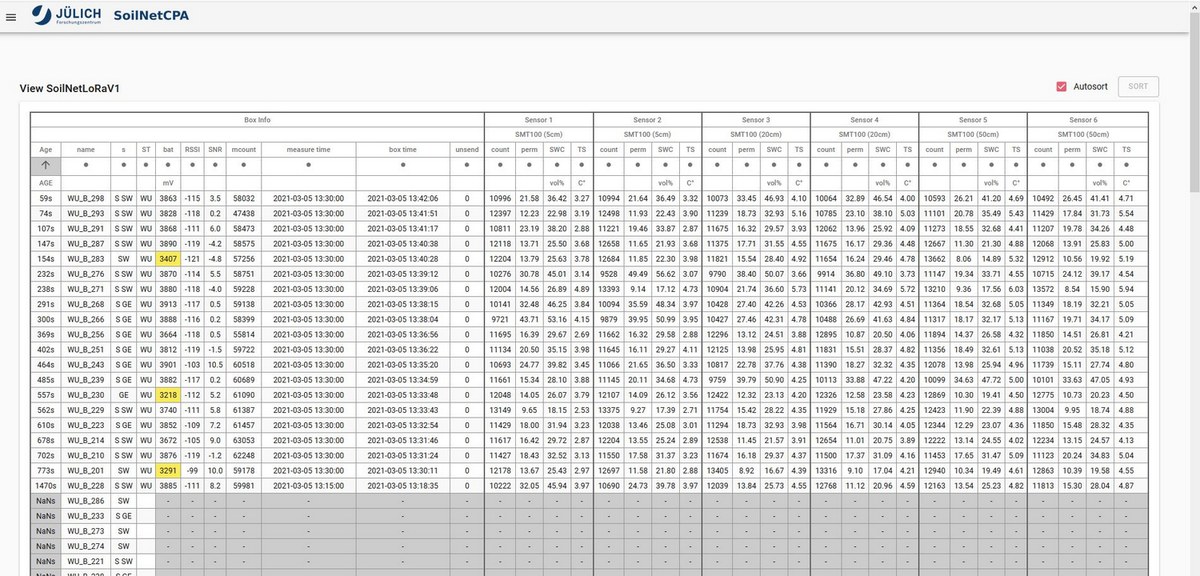

CPA Software (Control Panel Application)
- Receive, decode, answer, visualize and export the data packets from the soilnet wireless sensor network.
- Full configurability of the program functionality (e.g. import, view, node, export format)
- Parameters as measuring interval and status information for each node are changeable
- Time synchronization of the nodes is carried out.
- Different measuring units can be defined (soil moisture station, weather station, groundwater level station, etc.) and operated in parallel.
- For each measurement unit there is a separate tabular representation of the data on a website.
- The most recently received data can be viewed and the faultless operation of the station can be checked.
- SoilNet LoRa CPA application is running on a linux based system, eg. Ubuntu or Raspbian.
![V5 Common Features](/en/ibg/ibg-3/images/research/environmental-processes-and-technologies/terrestrial-observation-platforms/soilnet/cpa_software.jpg/@@images/image/great)
