Research with Neutrons for Better mRNA Vaccines

08 March 2021

BioNTech, the Mainz-based biotechnology company which together with the US pharmaceutical company Pfizer developed the first Covid-19 vaccine approved in the EU, is also working with the Jülich Centre for Neutron Science (JCNS) on vaccine development. Experiments are being conducted on a neutron scattering instrument operated by the JCNS at the Heinz Maier-Leibnitz Zentrum in Garching. In 2020 for instance, the researchers, together with the Johannes Gutenberg University Mainz and other partners, published a study on how the efficiency of inserting mRNA into human cells can be improved by optimised packaging. In 2019, the researchers, again in collaboration with their scientific partners, published the results of structural investigations of a model system for packaging mRNA.

mRNA vaccines are a new class of vaccines based on the use of messenger RNA. mRNA serves as a blueprint for the synthesis of protein molecules in human cells. It translates the blueprints stored in the genetic code, the DNA, for the molecular machinery of cells, which connects the building blocks of proteins, the amino acids, to complex molecules using the blueprint.

BioNTech’s Corona vaccine, for example, contains mRNA that encodes the blueprint of the so-called spike protein. The virus uses this to dock onto human cells. The vaccinated cells produce the encoded protein for a short time until the mRNA is naturally degraded and released, thus training the immune system to recognize the foreign protein.

It is likely that the method is not only suitable for vaccinations against infectious diseases such as Covid-19. Since, in principle, blueprints for a wide variety of proteins can be introduced into the body this way, it is also hoped that immune reactions against certain types of cancer, for example, can be triggered in this way.

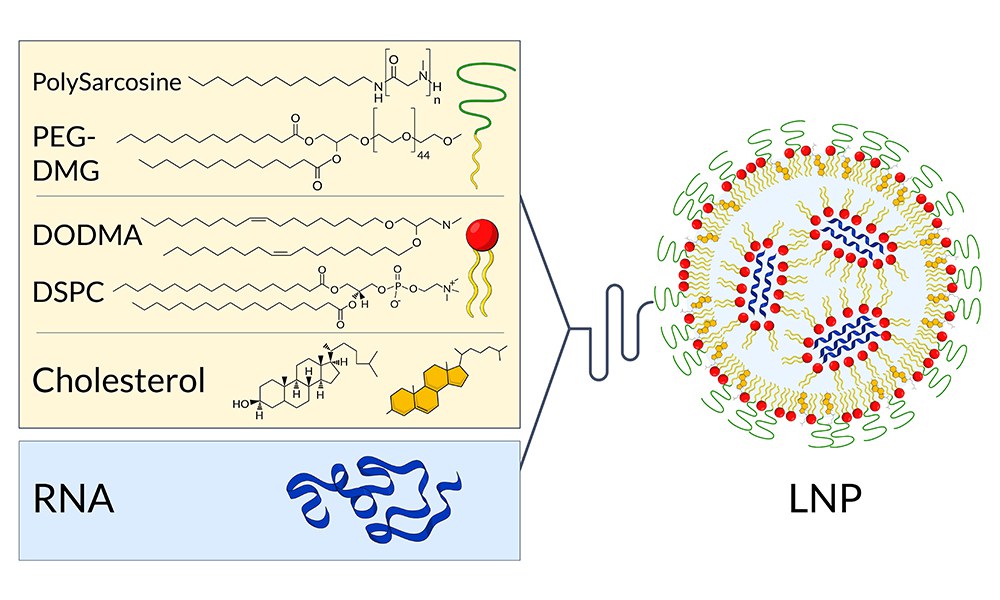

Successfully introducing messenger RNA into cells in the body, known as transfection, is challenging but crucial for the vaccine’s effectiveness. Pure mRNA would quickly be degraded by enzymes found throughout the tissue before it could be absorbed by cells. To protect the precious cargo from damage, it is usually packed in tiny particles known as nanoparticles. These consist of molecules that resemble those of the cell membrane and can therefore fuse with them and deliver the mRNA to the cell interior.

The researchers used neutron scattering at JCNS to investigate various new approaches for packaging and delivering mRNA. Among other things, the investigations showed that the efficiency of transfection can be increased by using the right combination of materials to build the nanoparticles. Suitably constructed hybrid nanoparticles containing both lipids and polymers channel their cargo into the cells better than pure lipid or pure polymer nanoparticles, the scientists reported in 2020 in the scientific journal “Cells”.

 “Structural analyses on the Jülich neutron small-angle scattering instrument KWS-2, among others, showed that the highest transfection efficiency can be achieved using particle types that have a heterogeneous internal organization in which ordered and less ordered regions alternate in a characteristic way,” reports Dr Aurel Radulescu, Instrument Scientist at JCNS.

“For the accurate characterization of these types of hybrid systems, the small-angle neutron scattering technique offers the unique advantage of contrast variation and matching. With this method, parts of a complex multi-component morphology can be selectively highlighted without changing the physical chemistry of the sample.” In this process, hydrogen atoms of individual components are exchanged for heavy hydrogen. Neutrons can distinguish between the two isotopes and thus identify which hydrogen atoms belong to which molecule. “Such experiments require a high neutron flux on the sample, which is the main advantage of the KWS-2 instrument, together with a wide momentum transfer range that allows it to cover a broad length scale in real space.”

The quantity ratio between mRNA and the envelope material also plays a role in the efficiency of transfection: in 2019, the scientists reported in the journal "Biomaterials" on the high-molecular carbohydrate dextran as a "packaging material". These studies, also undertaken on the KWS-2 instrument among others, revealed a systematic relationship between the quantity ratio of dextran and mRNA and the efficiency of transfection as well as associated structural differences of the nanoparticles.

The use of these model systems and the systematic variation of basic processing steps make it possible to identify correlations between structural properties, biological activity and the production procedure. This understanding supports the further development of complex customised RNA therapeutics and vaccines.

Further information:

Performance data on the neutron small angle scattering instrument (KWS-2)

Information on BioNTech and their mRNA therapeutics

Original publication:

Hybrid Biopolymer and Lipid Nanoparticles with Improved Transfection Efficacy for mRNA
Christian D. Siewert, Heinrich Haas, Vera Cornet, Sara S. Nogueira, Thomas Nawroth, Lukas Uebbing, Antje Ziller, Jozef Al-Gousous, Aurel Radulescu, Martin A. Schroer, Clement E. Blanchet, Dmitri I. Svergun, Markus P. Radsak, Ugur Sahin and Peter Langguth
"Cells", 2020; DOI: 10.3390/cells9092034

Investigation of charge ratio variation in mRNA – DEAE-dextran polyplex delivery systems
C.Siewert, H.Haas, T.Nawroth, A.Ziller, S.S.Nogueira, M.A.Schroer, C.E.Blanchet, D.I.Sverg, A. Radulescu, F.Bates, Y.Huesemann, M.P.Radsak, U.Sahin, P.Langguth;
“Biomaterials”, 2019; DOI: 10.1016/j.biomaterials.2018.10.020
